Residential ESS

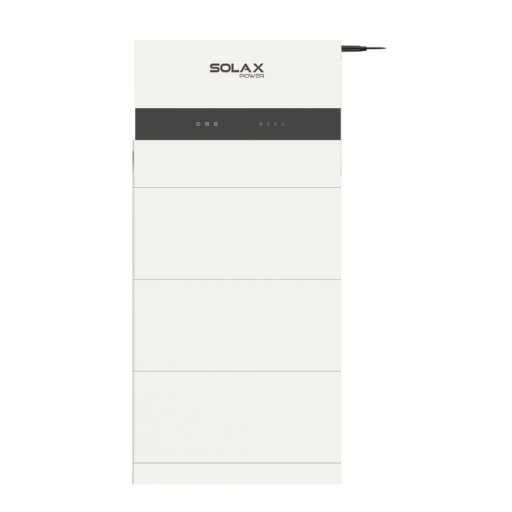

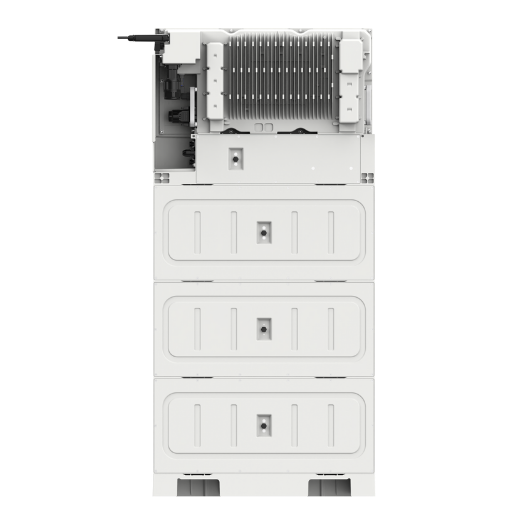

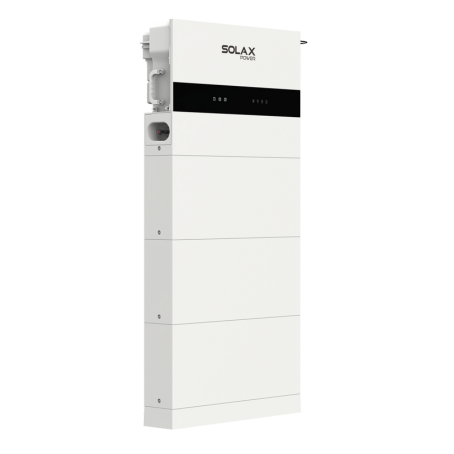

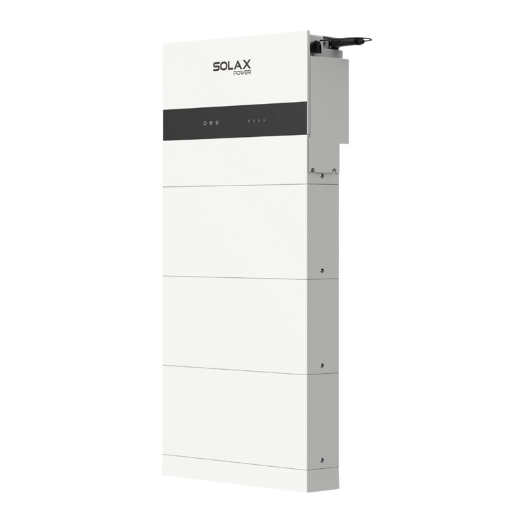

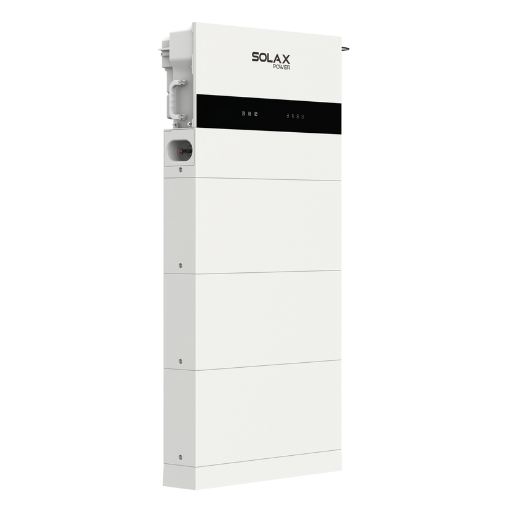

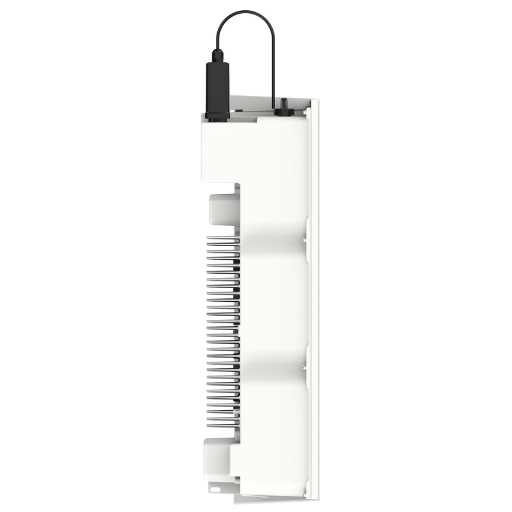

X3-IES-P

  • 4kW / 5kW / 6kW / 8kW / 10kW / 12kW / 15kW

Biến tần X3-IES-P có thiết kế linh hoạt và đơn giản, cấu trúc gọn nhẹ, toàn diện, cắm là chạy, giúp lắp đặt dễ dàng. Thiết bị phù hợp với nhiều ứng dụng khác nhau nhờ khả năng hỗ trợ bơm nhiệt, bộ sạc EV và cảnh quan thông minh.

Product Advantage

X3-IES-P cho phép vượt công suất đầu vào PV 200% và hỗ trợ lên đến 20A mỗi MPPT, giúp tối ưu sản lượng trong mọi điều kiện. Điện áp khởi động thấp và công nghệ theo dõi MPP toàn cầu giúp hấp thu năng lượng tối ưu suốt cả ngày.

Liên hệ với chúng tôi

Assured Reliability

  • IP66 protection degree

  • Type II SPD on AC&DC side

  • AFCI protection (optional)**

  • Unique battery heating tech and wide temperature tolerance

  • Up to 200% EPS output for 10s

  • UPS-level switchover time<10ms



Smart Management

  • Al ready, forecasting solar generation and home consumption for smart energy management strategy control*

  • VPP ready with a variety of compatibility (OpenADR, IEEE2030.5, FCAS, API)**

  • Micro-grid support for real-time balance in grid/off-grid

  • Wireless meter solution

  • Smart Schedule, Smart Scene, and 7*24h TOU

  • Global MPP scan for optimal energy harvest


High Performance

  • Max. 3 MPPTs for versatile application scenarios

  • 200% oversizing and 200% PV input power

  • Max. 20A PV input per MPPT

  • Low startup voltage for higher energy harvest


Flexible Adaptability

  • All-in-one, plug-and-play design

  • Support smart scene functions (e.g., heat pump, EV charger)

  • Versatile installation for varied needs


Product Parameters

  • X3-IES-4K-P
  • X3-IES-5K-P
  • X3-IES-6K-P
  • X3-IES-8K-P
  • X3-IES-10K-P
  • X3-IES-12K-P
  • X3-IES-15K-P
  • X3-IES-4K-P
    • PV INPUT

      Max. recommended PV array power

      8 kWp

      MPPT voltage range

      110~950 V

      Number of MPP. trackers / strings per MPPT

      2/(1/1)

      Max. input current per MPPT

      20 A/20 A


    • AC INPUT & OUTPUT(ON-GRID)

      Rated output power

      4kW

      Rated AC voltage

      3 / N / PE, 220 / 380 V

      3 / N / PE, 230 / 400 V


    • EPS(OFF-GRID) OUTPUT(WITH BATTERY)

      Rated EPS output power

      4 kVA

      Peak EPS output power

      2 times of rated power, 10s

      Switchover time

      <10 ms


    • BATTERY MODEL

      Battery type

      Li-ion (LFP)

      Ingress protection

      IP66


    • GENERAL

      Dimensions (W x H x D)

      717x405x209.5 mm

      Cooling conceptNature cooling
      Net Weight

      37 kg


  • X3-IES-5K-P
    • PV INPUT

      Max. recommended PV array power

      10 kWp

      MPPT voltage range

      110~950 V

      Number of MPP. trackers / strings per MPPT

      2/(1/1)

      Max. input current per MPPT

      20 A/20 A


    • AC INPUT & OUTPUT(ON-GRID)

      Rated output power

      5kW (AS4777 4999)

      Rated AC voltage

      3 / N / PE, 220 / 380 V

      3 / N / PE, 230 / 400 V


    • EPS(OFF-GRID) OUTPUT(WITH BATTERY)

      Rated EPS output power

      5 kVA

      Peak EPS output power

      2 times of rated power, 10s

      Switchover time

      <10 ms


    • BATTERY MODEL

      Battery type

      Li-ion (LFP)

      Ingress protection

      IP66


    • GENERAL

      Dimensions (W x H x D)

      717x405x209.5 mm

      Cooling conceptNature cooling
      Net Weight

      37 kg


  • X3-IES-6K-P
    • PV INPUT

      Max. recommended PV array power

      12 kWp

      MPPT voltage range

      110~950 V

      Number of MPP. trackers / strings per MPPT

      2 / (1 / 1)

      Max. input current per MPPT

      20 A/20 A


    • AC INPUT & OUTPUT(ON-GRID)

      Rated output power

      6kW

      Rated AC voltage

      3 / N / PE, 220 / 380 V

      3 / N / PE, 230 / 400 V


    • EPS(OFF-GRID) OUTPUT(WITH BATTERY)

      Rated EPS output power

      6 kVA

      Peak EPS output power

      2 times of rated power, 10s

      Switchover time

      <10 ms


    • BATTERY MODEL

      Battery type

      Li-ion (LFP)

      Ingress protection

      IP66


    • GENERAL

      Dimensions (W x H x D)

      717x405x209.5 mm

      Cooling conceptNature cooling
      Net Weight

      37 kg


  • X3-IES-8K-P
    • PV INPUT

      Max. recommended PV array power

      16 kWp

      MPPT voltage range

      110~950 V

      Number of MPP. trackers / strings per MPPT

      3 / (1 / 1 / 1)

      Max. input current per MPPT

      20 A / 20 A / 20 A


    • AC INPUT & OUTPUT(ON-GRID)

      Rated output power

      10 kW  (AS4777 9999)

      Rated AC voltage

      3 / N / PE, 220 / 380 V

      3 / N / PE, 230 / 400 V


    • EPS(OFF-GRID) OUTPUT(WITH BATTERY)

      Rated EPS output power

      10 kVA

      Peak EPS output power

      2 times of rated power, 10s

      Switchover time

      <10 ms


    • BATTERY MODEL

      Battery type

      Li-ion (LFP)

      Ingress protection

      IP66


    • GENERAL

      Dimensions (W x H x D)

      717x405x209.5 mm

      Cooling conceptNature cooling
      Net Weight

      37 kg


  • X3-IES-10K-P
    • PV INPUT

      Max. recommended PV array power

      20 kWp

      MPPT voltage range

      110~950 V

      Number of MPP. trackers / strings per MPPT

      3 / (1 / 1 / 1)

      Max. input current per MPPT

      20 A / 20 A / 20 A


    • AC INPUT & OUTPUT(ON-GRID)

      Rated output power

      10 kW  (AS4777 9999)

      Rated AC voltage

      3 / N / PE, 220 / 380 V

      3 / N / PE, 230 / 400 V


    • EPS(OFF-GRID) OUTPUT(WITH BATTERY)

      Rated EPS output power

      10 kVA

      Peak EPS output power

      2 times of rated power, 10s

      Switchover time

      <10 ms


    • BATTERY MODEL

      Battery type

      Li-ion (LFP)

      Ingress protection

      IP66


    • GENERAL

      Dimensions (W x H x D)

      717x405x209.5 mm

      Cooling conceptNature cooling
      Net Weight

      37 kg


  • X3-IES-12K-P
    • PV INPUT

      Max. recommended PV array power

      24 kWp

      MPPT voltage range

      110~950 V

      Number of MPP. trackers / strings per MPPT

      3 / (1 / 1 / 1)

      Max. input current per MPPT

      20 A / 20 A / 20 A


    • AC INPUT & OUTPUT(ON-GRID)

      Rated output power

      12 kW

      Rated AC voltage

      3 / N / PE, 220 / 380 V

      3 / N / PE, 230 / 400 V


    • EPS(OFF-GRID) OUTPUT(WITH BATTERY)

      Rated EPS output power

      12 kVA

      Peak EPS output power

      2 times of rated power, 10s

      Switchover time

      <10 ms


    • BATTERY MODEL

      Battery type

      Li-ion (LFP)

      Ingress protection

      IP66


    • GENERAL

      Dimensions (W x H x D)

      717x405x209.5 mm

      Cooling conceptNature cooling
      Net Weight

      37 kg


  • X3-IES-15K-P
    • PV INPUT

      Max. recommended PV array power

      30 kWp

      MPPT voltage range

      110~950 V

      Number of MPP. trackers / strings per MPPT

      3 / (1 / 1 / 1)

      Max. input current per MPPT

      20 A / 20 A / 20 A


    • AC INPUT & OUTPUT(ON-GRID)

      Rated output power

      15 kW (AS14999)

      Rated AC voltage

      3 / N / PE, 220 / 380 V

      3 / N / PE, 230 / 400 V


    • EPS(OFF-GRID) OUTPUT(WITH BATTERY)

      Rated EPS output power

      15 kVA

      Peak EPS output power

      2 times of rated power, 10s

      Switchover time

      <10 ms


    • BATTERY MODEL

      Battery type

      Li-ion (LFP)

      Ingress protection

      IP66


    • GENERAL

      Dimensions (W x H x D)

      717x405x209.5 mm

      Cooling conceptNature cooling
      Net Weight

      37 kg
