Residential Batteries

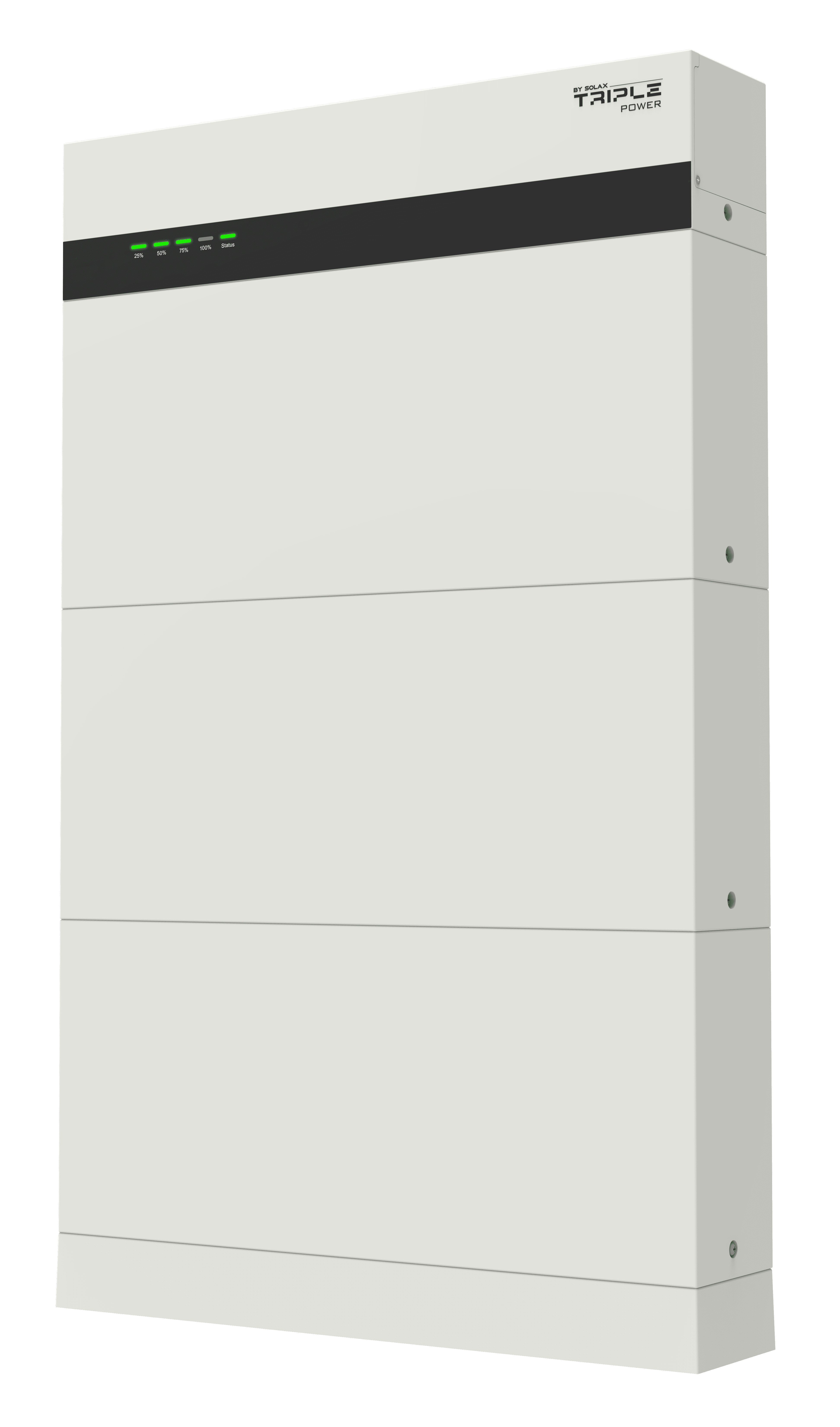

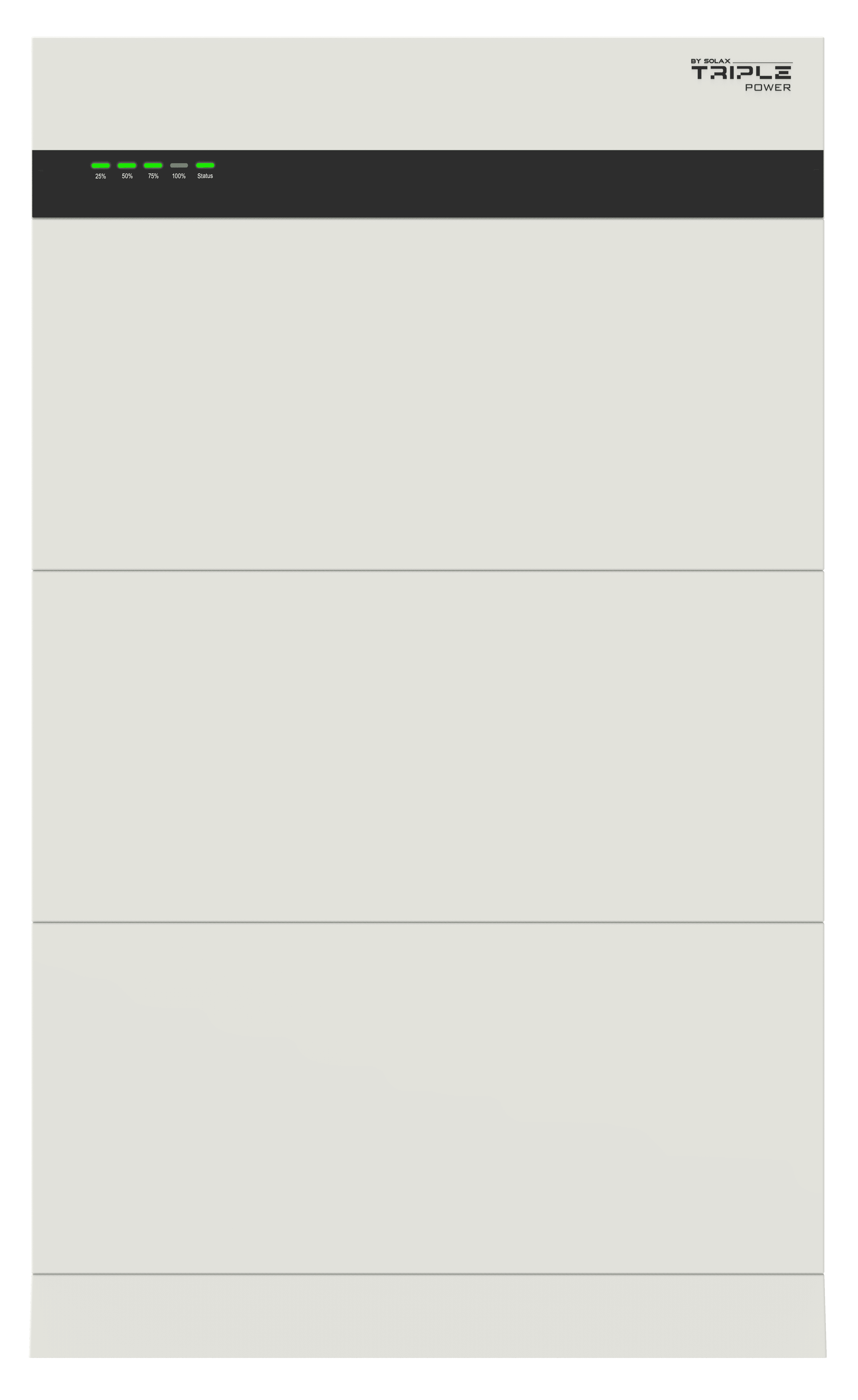

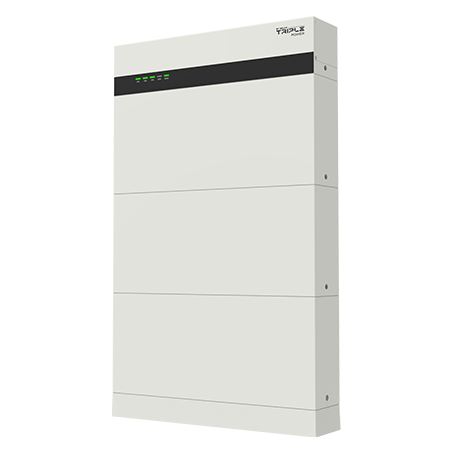

HS50E-D

5.1 kWh-92.1 kWh

HS50E-D có thiết kế dạng mô-đun với khả năng tăng dung lượng linh hoạt từ 5.12kWh lên đến 92.16kWh, lý tưởng cho nhu cầu ngày càng tăng. Với thiết kế gọn nhẹ, hỗ trợ cả gắn tường và sàn, đồng thời tương thích với các biến tần một pha và ba phacủa SolaX, đảm bảo thích ứng tối đa khi lắp đặt.

Tải dữ liệu

Product Advantage

HS50E-D hỗ trợ dòng sạc/xả 50A và hoạt động được trong nhiệt độ khắc nghiệt từ -30°C đến 53°C. Chuẩn bảo vệ IP66, pin LFP không chứa coban, thuật toán SOC/SOH ứng dụng AI tân tiến, tất cả tạo nên một giải pháp lưu trữ năng lượng bền bỉ, quản lý thông minh và nâng cấp OTA.

Easy Installation & Compatibility

Lightweight, compact, and easy to set up
Available in wall-mounted or floor-mounted options
Fit a wide range of SolaX single and three-phase inverters

High Performance

Max. 50A charge/discharge current
-30°C to 53°C operational range with advanced heating technology
Higher SOC/SOH accuracy through AI battery model algorithms
Automotive-grade cell sampling chips for superior stability and safety

Safety & Reliability

Certified IP66 for outstanding protection
Cobalt-free LFP battery: safe, long-lasting, efficient, high energy density
A robust cycle life of over 6,000 times, ensuring longevity and reliability

Flexibility

Modular design, flexible expansion
Start with 5.12kWh, expand up to 92.16kWh

Product Parameters

T-BAT HS 5
T-BAT HS 10
T-BAT HS 15
T-BAT HS 20
T-BAT HS 25
T-BAT HS 30

T-BAT HS 5
- SYSTEM SPECIFICATION
  Number of modules 1 Module
  Norminal capacity [kWh] 5.1
  Nominal voltage [V] 102.4
  Standard power [kW]
  3
  Max. charge/discharge current (A) 50
  Dimensions (L × W × H) [mm] 730*150*558
- GENERAL
  BMS Dimensions (L × W × H) [mm] 730*150*165
  BMS Weight [kg] 9.7
  Battery type Li-ion (LFP)
  Battery module [kWh] 5.1
  Battery module dimensions (L × W × H) [mm] 730*150*318
  Battery module weight [kg] 47
- ENVIRONMENTAL REQUIREMENTS
  Environment Outdoor / Indoor (*Please refer to the user manual for installation condition)
  Protection degree IP66
T-BAT HS 10
- SYSTEM SPECIFICATION
  Number of modules 2 Module
  Norminal capacity [kWh] 10.2
  Nominal voltage [V] 204.8
  Standard power [kW]
  6.1
  Max. charge/discharge current (A) 50
  Dimensions (L × W × H) [mm] 730*150*876
- GENERAL
  BMS Dimensions (L × W × H) [mm] 730*150*165
  BMS Weight [kg] 9.7
  Battery type Li-ion (LFP)
  Battery module [kWh] 5.1
  Battery module dimensions (L × W × H) [mm] 730*150*318
  Battery module weight [kg] 47
- ENVIRONMENTAL REQUIREMENTS
  Environment Outdoor / Indoor (*Please refer to the user manual for installation condition)
  Protection degree IP66
T-BAT HS 15
- SYSTEM SPECIFICATION
  Number of modules 3 Module
  Norminal capacity [kWh] 15.3
  Nominal voltage [V] 307.2
  Standard power [kW]
  9.2
  Max. charge/discharge current (A) 50
  Dimensions (L × W × H) [mm] 730*150*1194
- GENERAL
  BMS Dimensions (L × W × H) [mm] 730*150*165
  BMS Weight [kg] 9.7
  Battery type Li-ion (LFP)
  Battery module [kWh] 5.1
  Battery module dimensions (L × W × H) [mm] 730*150*318
  Battery module weight [kg] 47
- ENVIRONMENTAL REQUIREMENTS
  Environment Outdoor / Indoor (*Please refer to the user manual for installation condition)
  Protection degree IP66
T-BAT HS 20
- SYSTEM SPECIFICATION
  Number of modules 4 Modules
  Norminal capacity [kWh] 20.4
  Nominal voltage [V] 409.6
  Standard power [kW]
  12.2
  Max. charge/discharge current (A) 50
  Dimensions (L × W × H) [mm]
  730*150*1194
  730*150*491
- GENERAL
  BMS Dimensions (L × W × H) [mm] 730*150*165
  BMS Weight [kg] 9.7
  Battery type Li-ion (LFP)
  Battery module [kWh] 5.1
  Battery module dimensions (L × W × H) [mm] 730*150*318
  Battery module weight [kg] 47
- ENVIRONMENTAL REQUIREMENTS
  Environment Outdoor / Indoor (*Please refer to the user manual for installation condition)
  Protection degree IP66
T-BAT HS 25
- SYSTEM SPECIFICATION
  Number of modules 5 Modules
  Norminal capacity [kWh] 25.6
  Nominal voltage [V] 512
  Standard power [kW]
  15.3
  Max. charge/discharge current (A) 50
  Dimensions (L × W × H) [mm]
  730*150*1194
  730*150*809
- GENERAL
  BMS Dimensions (L × W × H) [mm] 730*150*165
  BMS Weight [kg] 9.7
  Battery type Li-ion (LFP)
  Battery module [kWh] 5.1
  Battery module dimensions (L × W × H) [mm] 730*150*318
  Battery module weight [kg] 47
- ENVIRONMENTAL REQUIREMENTS
  Environment Outdoor / Indoor (*Please refer to the user manual for installation condition)
  Protection degree IP66
T-BAT HS 30
- SYSTEM SPECIFICATION
  Number of modules 6 Modules
  Norminal capacity [kWh] 30.7
  Nominal voltage [V] 614.4
  Standard power [kW]
  18.4
  Max. charge/discharge current (A) 50
  Dimensions (L × W × H) [mm]
  730*150*1194
  730*150*1127
- GENERAL
  BMS Dimensions (L × W × H) [mm] 730*150*165
  BMS Weight [kg] 9.7
  Battery type Li-ion (LFP)
  Battery module [kWh] 5.1
  Battery module dimensions (L × W × H) [mm] 730*150*318
  Battery module weight [kg] 47
- ENVIRONMENTAL REQUIREMENTS
  Environment Outdoor / Indoor (*Please refer to the user manual for installation condition)
  Protection degree IP66
